TZ-3100
Features:
1) Warm seat, warm water douching for female and for
hip cleaning
2) Anti-bacteria seat, spraying nozzle cleans by itself3)
Warm dry
4) seat sensor
5)buffered seat
6)energy saving
Techinical specification:
Rated
power |
AC 220 240V50/60Hz |
Power
cord |
3Cx0.75mm length
of 180cm |
Water
pressure |
0.04 0.70MPa |
Warm Washing |
Water flow
rate |
washingMax.1.3L/min. |
Bidet washingMax.1.4L/min. |
Water
pressure control |
Anus washing,
bidet washing for 4 steps,
controlled by micro computer |
Temperature
control |
4-step adjustment
(OFF, about 340C ,370Cand 400C ) |
Tank
capacity |
1.4L |
Power |
550W |
Safety
device |
Float
switch, temp sensor,Bi-metal sensor, temp fuse |
Warm Seat |
Power |
40W(standard
), 45W(lengthen) |
Soft
seat |
When
closing, the seat and cover fall down slowly |
Temperature
control |
4-step adjustment
(OFF, about 340C ,380C and 420C ) |
Safetydevice |
Temp
sensor, temp fuse |
Warm
wind |
Power |
200W/3100
|
Temperature
control |
4-step adjustment
(OFF, about 450C ,550C ,and 650C ) |
Safety
device |
Temp
fuse |
Room
temperature |
0-500C |
Weight |
About
5.5 kg |

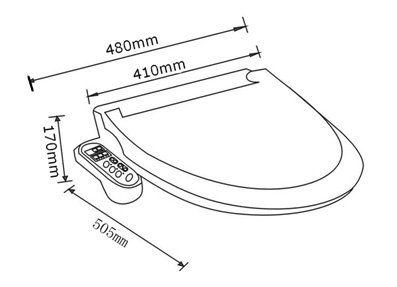

Drawing:
|
