TZ-8603Y
Features:
1. Bidet for lady washing or men washing
2. Nozzle head can go backward or forward to get a right
position for washing
3. The nozzelcan be set a mode to move back or forth
in a special range during spraying.
4. The temperature on ring seat can be set up in the
range of 35-48 celsius degree
5. Warm air for buttock drying after washing
6. Automatic deordorization to eliminate odor and make
air purified
7. Soft-closing buffer
8. Automatic sensing on ring seat
9. Automatic flush
10. Energy-saving function
11. wireless remote control
12.Nozzles self-cleaning
Technical specification:
| Power supply |
AC220-240V50Hz |
| Power cable |
1.5m |
| Rated water pressure |
0.04-0.70MPa(0.4-7.0kg/cm ) |
| Rated power input |
630W-750W |
|
Washing Device |
Spraying
volume |
1.2L/min for
max washing |
| 1.3L/min for
max bidet |
| Water pressure
level |
Both wash and
bidet with 4 levels available |
| Water temperature
level |
4 levels available
at (No-heating,340C , 370C , 400C ) |
| Tank capacity |
1.8L |
| Heating Power |
600W(max) |
| Safety device |
Water-levelswitch,temperature
sensor,
thermal switch,temperature-control fuse |
|
Seat |
Heating power |
45W(Max) |
| Soft close device |
The soft close
device lowers the lid and seat down to the bowl
gently and quietly, when user open or close it. |
| Temperature
level |
4 options available
at (No-heating, 340C , 380C , 420C ) |
| Safety device |
Temp sensor,
temperature-control fuse |
|
Warm air |
Heating power |
270W(Max) |
| Temperature
level |
4 gears available
at (No-heating, about
450C ,about550C ,about 650C ) |
| Safety device |
Temperature-control
fuse |
| Spraying type |
Jet spraying |
| Spraying capacity |
6L(large), 4.5L(small) |
| Bathroom temperature |
0-500C |
| Weight |
About 50 kg |
| Size |
Length 820* Width440 * Height
580 |

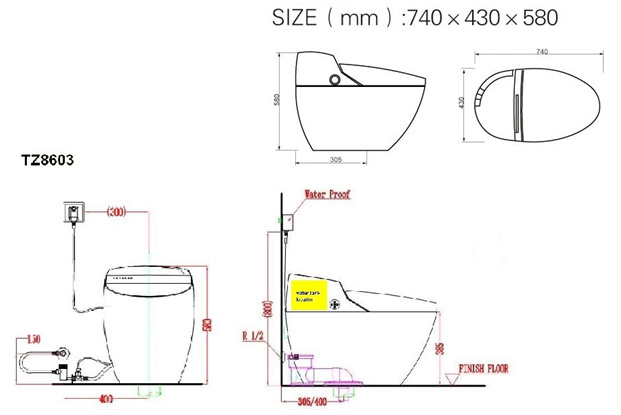

Drawing :
|
