TZ-8702

Features :

1. Bidet for lady washing or men washing
2. Nozzle head can go backward or forward to get a right position for washing
3. The nozzelcan be set a mode to move back or forth in a special range during spraying.
4. The temperature on ring seat can be set up in the range of 35-48 celsius degree
5. Warm air for buttock drying after washing
6. Automatic deordorization to eliminate odor and make air purified
7. Soft-closing buffer
8. Automatic sensing on ring seat
9. Automatic flush
10. Energy-saving function
11. Wireless remote control

Technical specifications:

Power supply

AC220V50Hz

Power cable

1.5m

Rated water pressure

0.10-0.70MPa(0.4-7.0kg/cm )







Washing Device

Spraying volume

1.2L/min for max washing

1.3L/min for max bidet

Water pressure level

Both wash and bidet with 4 levels available

Water temperature level

4 levels available at (No-heating,340C , 370C , 400C )

Tank capacity

1.3L

Heating Power

600W(max)

Safety device

Water-levelswitch,temperature sensor,
thermal switch,temperature-control fuse



Seat

Heating power

45W(Max)

Temperature level

4 options available at (No-heating, 340C , 380C , 420C )

Safety device

Temp sensor, temperature-control fuse



Warm air

Heating power

270W(Max)

Temperature level

4 gears available at (No-heating, about
450C ,about550C ,about 650C )

Safety device

Temperature-control fuse

Flushingtype

Wash down



Sewage draining exit installing size

180mm

Dual flush cistem

4/6L

Ambient temperature

0-500C

Weight

About 30KG

Size

Length615mm*width415mm*height455mm

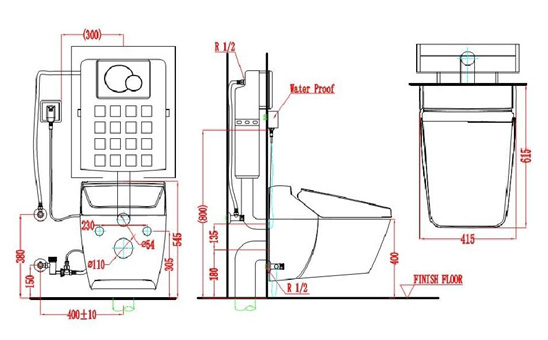

Drawing :
