Electronic bidet : TZ8068 | TZ8088 | TZ8098 | TZ8201A | TZ8202B | TZ8288 | TZ8298 | TZ8388
  TZ8398 | TZ8603W | TZ8603Y | TZ8701 | TZ8702 | TZ8705

TZ8201A

Features:

1. Bidet for lady washing or men washing
2. soft light illumination in the night
3. The nozzelcan be set a mode to move back or forth in a special range during spraying.
4. The temperature on ring seat can be set up in the range of 35-48 celsius degree
5. Warm air for buttock drying after washing
6. Automatic deordorization to eliminate odor and make air purified
7. Soft-closing buffer
8. Automatic sensing on ring seat
9. Automatic flush
10. Energy-saving function
11.Wireless remote control
12.colorLED to show the time and temperature in controller13.Nozzles self-cleaning

Technical specification:

Power supply

DC220V 960W 50Hz

Power wire

1.0mm2 vinyl insulation cord at length 1.8m







Cleaning

System

Water

Flow

Buttocks

FlowRange:0.4-1.0L/min(under water pressure 0.19Mpa (2.0kgf/cm2 )

Bidet

FlowRange:0.5-1.0L/min(under water pressure

0.19Mpa (2.0kgf/cm2 )

Water Temperature

Adjustable; normal at 40

Heater Capacity

900W

Warm Water Vol.

1.0L

Cleaning Mode

Moving Way

Safety System

Fuse/ Anti-overheating/Idle-heating Protector



Anti-reverse System

Non-return system and vacuum breaker

Air-drying

System

Air Temperature

Normal at 55??

Blowing Flow

0.3/min

Heater Capacity

300W

Safety System

Infuse

Warm

keeping

System

Seat Temp.

Adjustable; normal at 40??

Heater Capacity

30W

Safety System

Anti-overheating

Deodorizing

System

Mode

Touch to activate

Blow

0.09m3 /min

Water Pressure

Min.0.05Mpa(0.5kgf/cm2) Max.0.74Mpa (7.5kgf/cm2 )

Water Temperature

0-35

Ambient Temperature

0-40

Remote Controller; Battery

DC 1.5VSize AAAX 2

Overall Size

800mm x 420mm x 620mm

Packing Size

880mm x 510mm x 700mm

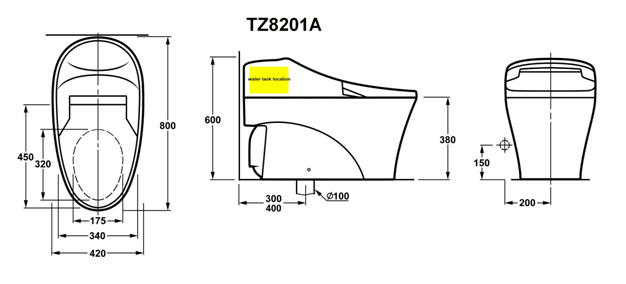

Drawing:
